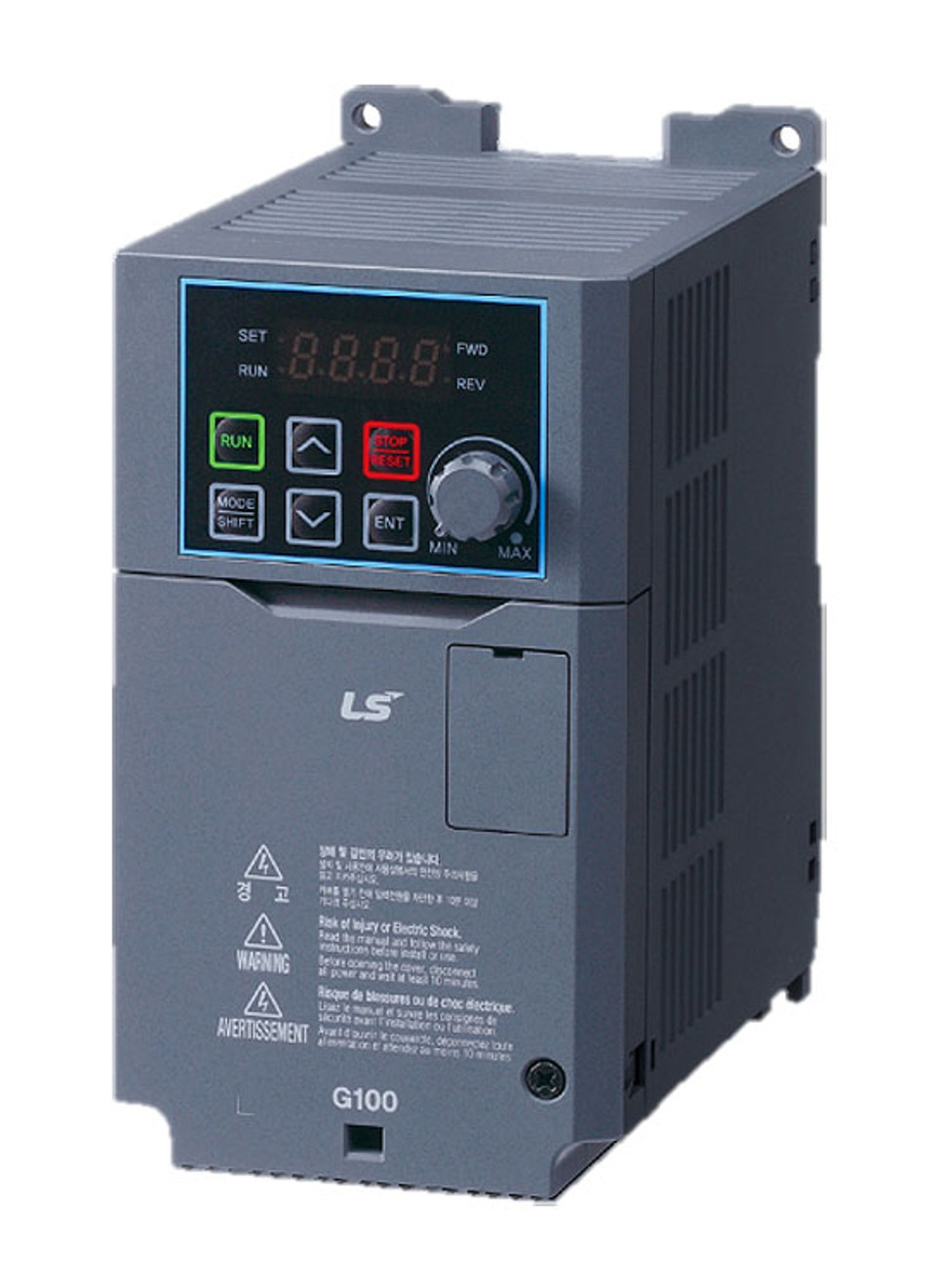

LS ELECTRIC VFD
Product code 6040000200
Product description LSLV0008G100-2EONN
Enclosure Rating IP20, UL Type 1 (Optional)
Input Rating (3-Phase)
Supply Voltage [VAC] 200~240 VAC
Rated Current [HD/Heavy Duty] 4.9 A
Rated Current [ND/Normal Duty] 6.3 A
Supply Frequency [Hz] 50~60 Hz
Input Rating (1-Phase) Supply Voltage (VAC) 240 VAC
Rated Current (HD) 4.9 A
Rated Current (ND) 6.3 A
Supply Frequency (Hz) 50~60 Hz
Output Rating (3-Phase Input)
Output Voltage (VAC) 200~240 VAC
Motor Power HP (HD) 1.0 hp
Motor Power HP (ND) 2.0 hp
Motor Power kW (HD) 0.75 kW
Motor Power kW (ND) 1.5 kW
Output Current (HD) 5.0 A
Output Current (ND) 6.0 A
Rated Capacity (HD) 1.9 kVA
Rated Capacity (ND) 2.3 kV
