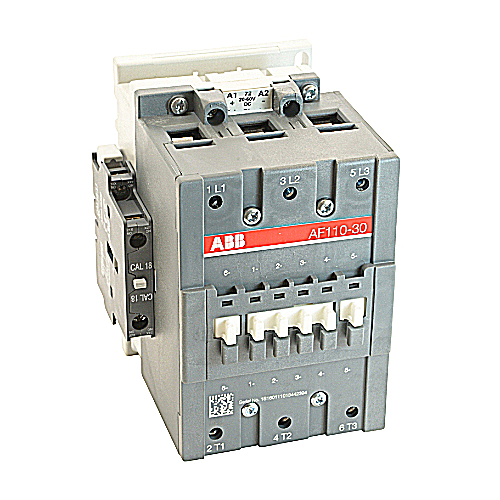

ABB, AF110-30-11-72, CONTACTOR, W, 1NO, NC, AUX, 120VAC

ABB, AF110-30-11-72, CONTACTOR, W, 1NO, NC, AUX, 120VAC

Catalog No. : 1SFL427001R1111

General Characteristics

• Category : AF Contactors
  Block Contactor Type : 3-Pole Contactor
  Product Type : AF
  General Use Rating UL/CSA : (600 V AC) 160 A
  Object Classification Code : Q
  Terminal Type : Double Clamp
  Rated Control Circuit Voltage : 50 Hz /60 Hz 24 … 60 V
  DC Operation 20 … 60 V
  Number of Main Contacts NO : 3
  Number of Main Contacts NC : 0
  Maximum Operating Voltage UL/CSA : Main Circuit 600 V
• Horsepower Rating UL/CSA : (200 V AC) Three Phase 30 hp
  (208 V AC) Three Phase 30 hp
  (220 … 240 V AC) Three Phase 40 hp
  (440 … 480 V AC) Three Phase 75 hp
  (550 … 600 V AC) Three Phase 100 hp
