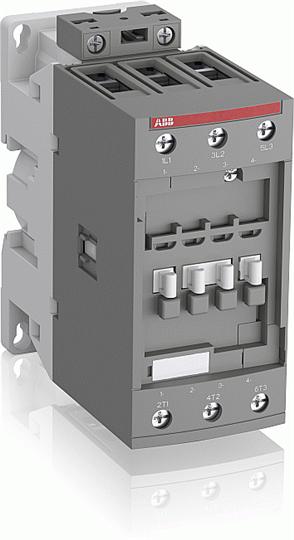

ABB, AF65-30-22-13, CONTACTOR, 3P, 68A, 100-250VAC/DC

ABB, AF65-30-22-13, CONTACTOR, 3P, 68A, 100-250VAC/DC

Catalog No. 1SBL387001R1322

General Characteristics

• Category : AF Contactors
  Block Contactor Type : 3-Pole Contactor
  Product Type : AF
  General Use Rating UL/CSA : (600 V AC) 90 A
  Object Classification Code : Q
  Terminal Type : Screw Terminals
  Rated Control Circuit Voltage : 50 Hz /60 Hz DC Operation 100 … 250 V
  Number of Main Contacts NO : 3
  Number of Main Contacts NC : 0
  Climatic Withstand : Category B according to IEC 60947-1 Annex Q
• Horsepower Rating UL/CSA : (220 … 240 V AC) Three Phase 25 hp
  (440 … 480 V AC) Three Phase 50 hp
  (550 … 600 V AC) Three Phase 60 hp
  (120 V AC) Single Phase 5 hp
  (200 … 208 V AC) Three Phase 20 hp
  (240 V AC) Single Phase 15 hp
